PD2-14 Electric Scroll Compressor
Specifications
| Model | PD2-14 |
| Displacement (ml/r) | 14cc |

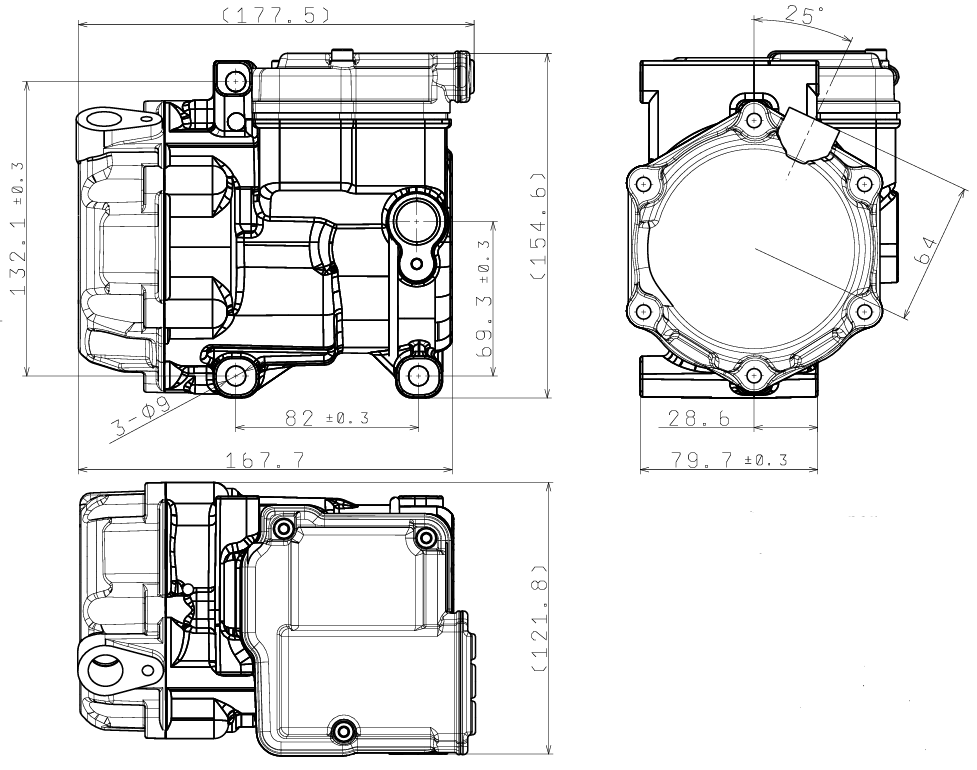

| 182*123*155Dimension (mm) | 182*123*155 |
| Refrigerant | R134a / R404a / R1234YF |
| Speed Range (rpm) | 1500 - 6000 |
| Voltage Level | DC 312V |
| Max. Cooling Capacity (kw/ Btu) | 2.84/9723 |
| C.O.P | 1.96 |
| Net Weight (kg) | 4.2 |
| Hi-pot and leakage current | < 5 mA (0.5KV) |
| Insulated Resistance | 20 MΩ |
| Sound Level (dB) | ≤ 74 (A) |
| Relief Valve Pressure | 4.0 Mpa (G) |
| Waterproof Level | IP 67 |
| Tightness | ≤ 5g/ year |
| Motor Type | Three-phase PMSM |
Features
1. Low power consumption to achieve a large cooling capacity high energy efficiency ratio, stable cooling capacity.
2. Integrated design, simple structure,small volume,light weight and high volume efficiency.
3. The compressor is directly driven by the power supply, with continuous and stable suction and exhaustsmall vibration and low noise.
4. Compressor parts, simple operation, reliable operation, high degree of automation, easy to installlowfailure rate, simple maintenance.
Scope Of Application
Posung Electric Compressor - R134A/ R407C / R1234YF refrigerant series products are suitable for Electric Vehicles, Hybrid Electric Vehicles, Trucks, Construction Vehicles, High-speed Trains, Electric Yachts, Electric Air-conditioning Systems, Parking Cooler , etc.
Posung Electric Compressor - R404A refrigerant series products are suitable for Industrail / Commercial Cryogenic Refrigerantion, Transportation Refrigerantion Equipment (Refrigeranting Vehicles,etc), Refrigerantion And Condensing units, etc.
Electric Car Air Conditioner
● Automotive air conditioning system
● Vehicle thermal management system
● High-speed rail battery thermal management system
Parking Cooler
● Parking air conditioning system
● Yacht air conditioning system
● Private jet air conditioning system
Refrigerated Compartment
● Logistics truck refrigeration unit
● Mobile refrigeration unit
Explosive View
