Products

PD2-14 Electric Scroll Compressor

Key Attributes

Comperssor Type: Electric Scroll Compressor

Voltage: DC 12V/24V/48V/72V/80V/96V/144V ARE OPTIONAL

Displacement (ml/r): 14CC

Refrigerant: R134a / R404a / R1234YF/R407c

Warranty: One year warranty

Place of Origin: Guangdong, China

Reference NO. : PD2-14

Size: 182*123*155

Brand Name: Posung

Car Model: Universal

Application: Frigo Van Truck Refrigeration Unit

Certification: IATF16949/ ISO9001 /E-Mark

Packaging : Export carton

Gross Weight: 5.2 KGS


Product Detail

Product Tags

Specifications

Model PD2-14
Displacement (ml/r) 14cc
182*123*155Dimension (mm) 182*123*155
Refrigerant R134a /R404a /R1234YF/R407c
Speed Range (rpm) 1500 - 6000
Voltage Level DC 12V/24V/48V/72V/80V/96V/144V
Max. Cooling Capacity (kw/ Btu) 2.84/9723
C.O.P 1.96
Net Weight (kg) 4.2
Hi-pot and leakage current < 5 mA (0.5KV)
Insulated Resistance 20 MΩ
Sound Level (dB) ≤ 74 (A)
Relief Valve Pressure 4.0 Mpa (G)
Waterproof Level IP 67
Tightness ≤ 5g/ year
Motor Type Three-phase PMSM

Features

1. Consisting of only a few parts, this compressor is very easy to handle.

2. The low failure rate and simple maintenance requirements ensure that you can enjoy its benefits for years to come.

3. The variety of applications for this compressor makes it a versatile choice for a variety of systems.

4. It is ideal for electric air conditioning systems, thermal management systems and heat pump systems

5. Combine efficiency, reliability and versatility.

Specifications (1)

6. Its great features guarantee optimum cooling capacity, while its compact design makes it an attractive addition to any space.

7. With this compressor, you can experience the perfect balance of comfort and efficiency.

Scope Of Application

The applications of electric scroll compressors are wide and diverse, including high-speed trains, electric yachts, electric air conditioning systems, thermal management systems, and heat pump systems. Posung Compressor provides efficient cooling and heating solutions for electric vehicles, hybrid vehicles, trucks, and engineering vehicles. As electric technology continues to advance, electric scroll compressors will continue to play a key role in powering these applications, paving the way for a more sustainable and energy-efficient future.

Specifications (2)

Electric Car Air Conditioner

● Automotive air conditioning system

● Vehicle thermal management system

● High-speed rail battery thermal management system

Specifications (3)

Parking Cooler

● Parking air conditioning system

● Yacht air conditioning system

● Private jet air conditioning system

Specifications (4)

Refrigerated Compartment

● Logistics truck refrigeration unit

● Mobile refrigeration unit

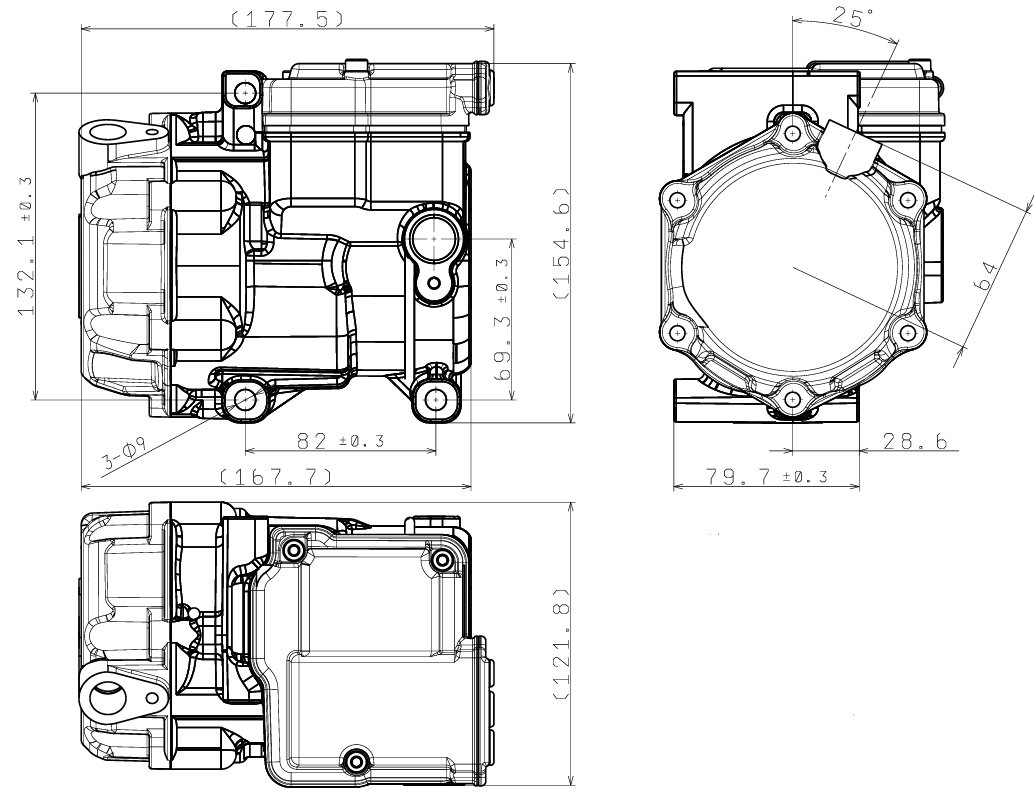

Explosive View

asd 5
